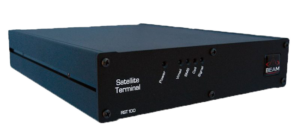

RemoteSAT (RST100)

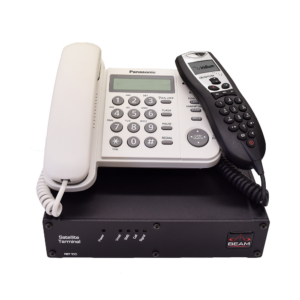

RemoteSAT satellite terminal combines the robust design with the intelligent technology to support RJ11 / POTS, voice and data services over the Iridium satellite network. The RemoteSAT terminal is equipped with a range of interfaces to support the use of standard corded/cordless phones or integrated PABX communications. RemoteSAT also gives the option to access voice services using a compact intelligent user handset. RemoteSAT satellite terminal is capable of presenting dial, busy and ring tones to suit country specific requirements as well as auto-dial or restricted dial functionality. It also supports access to the complete range of data services provided by Iridium including Circuit Switched Data and Direct Internet as well as SMS. The RemoteSAT has been designed to be used in fixed sites, maritime and emergency service applications where permanently installed reliable communication services are required. Multiple units may be installed in the same location to provide multi-line access. There…

Campo requerido
Email inválido
Campo requerido
Detalles del servicio
¡Gracias! Tu solicitud fue enviada con éxito. Te contactaremos pronto.
Ocurrió un error. Por favor intenta de nuevo.

RemoteSAT (RST100)

Connectors / Interfaces
Intelligent Handset RJ45 DPL BUS
Telephone / POTS RJ-11 2 -wire / TN12 or 600 ohm
Data Port RS232 Serial Interface
Log Port RS232 Serial Interface
Power 2 Pin screw type



Kit Contents
Mounting Brackets x
DC 1.5m Power Cable x
RST100 Main terminal x
Commands, Manuals x
CD – Beam Management System, AT x
User & Installation Manual x
Data Cable x
110-240V AC Plug Pack x



Environmental Specifications
Corrosion 40 °C with 90% – 95% relative humidity after 2h salt spray
Vibration 2 Hz – 13.2 Hz & 13.2 Hx – 100 hz
Operating Range -15 to +55°C +5 to +131°F
Storage -30 to +70 °C -22 to 158°F
Humidity 93% non condensing



Power Specifications
Standby 0.35 0.16
Transmit – inc handset 0.59 0.29
Standby – inc handset 0.47 0.22
Power Consumption (AMPS) 12 V DC 24 V DC
Power Input Voltage 11 – 32 V DC
Transmit 0.51 0.25



Physical Specifications
Outer Box Dimensions 330 W x 430 D x 95 H
(mm)
13 W x 16.93 D x 95 H
(inches)
Box Weight 4.22 kg 9.30 lbs
Weight – lbs 4.9 7.1
Dimensions – inches 8.9 x 10.9 x 2.1 15.7 x 12.8 x 3.5
Dimensions – mm Unit only
225 x 277 x 53
Packed
400 x 325 x 90
Weight – kg 2.25 3.25
