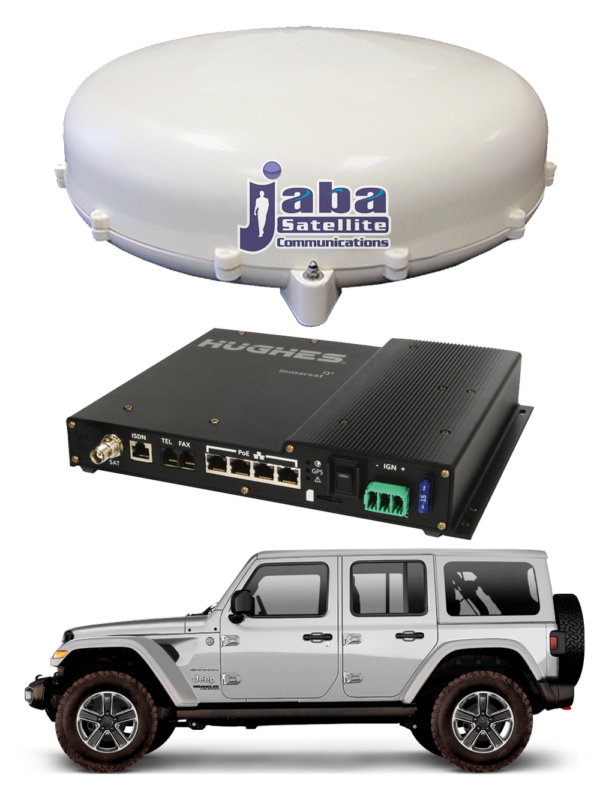

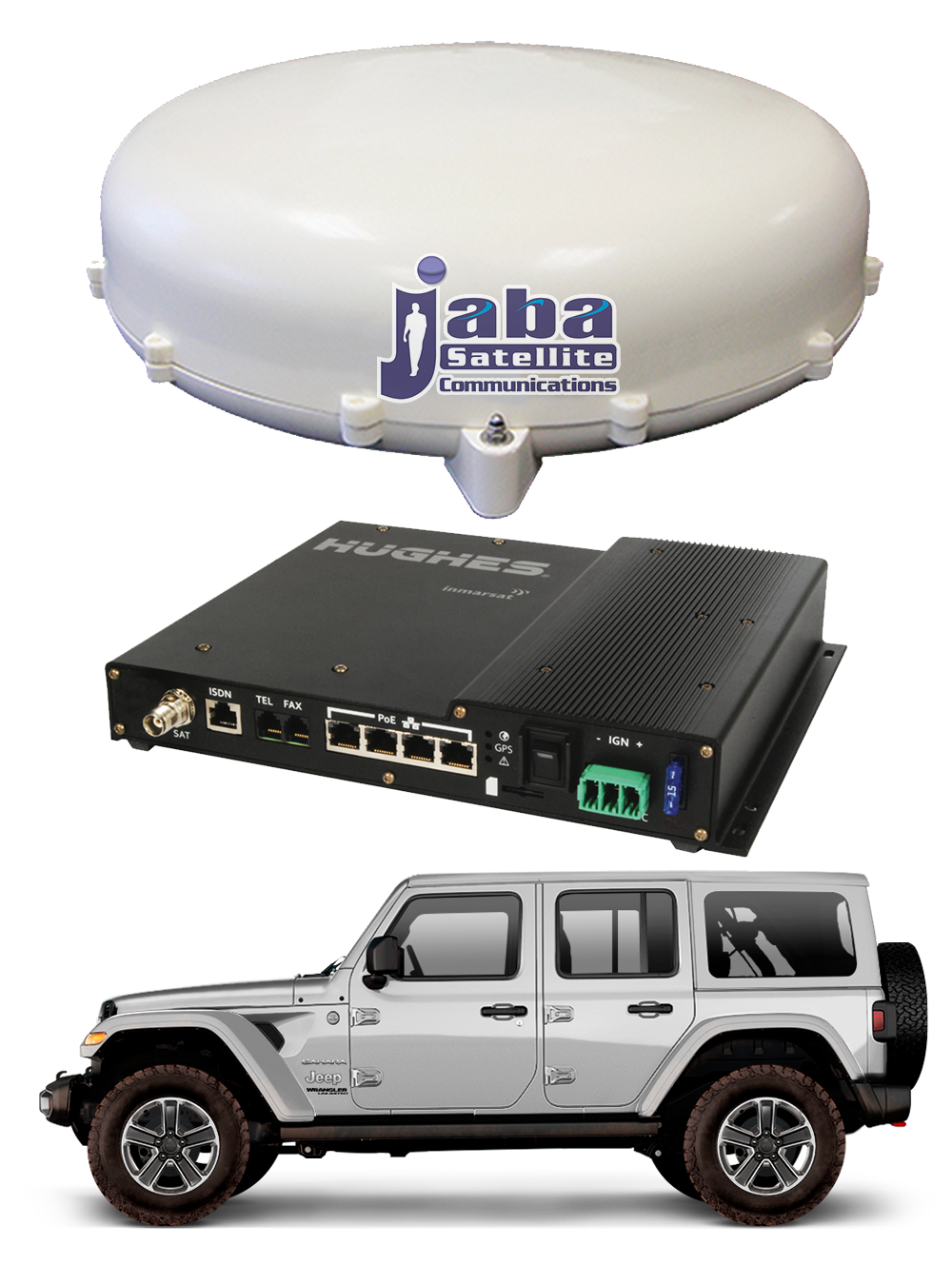

Internet Satelital Vehicular, COTM Communications on the move, SOTM Satcom On The Move, Movilidad Avanzada en todo terreno, Internet Satelital en Movimiento.
JabaSat Vehiculos
Dimensions
Transceiver H / W / D: 42.5 / 231 / 273 mm 1.67 / 9.72 / 10.63 inches
Antenna H / W: 152 / Ø477 mm 6.3 / Ø18.76 inches
Antenna: 6 kg / 13.2 lbs
Transceiver: 2.5 kg / 5.5 lbs
Global Services Voice: 4 kbps AMBE+2 Premium voice: 3.1 kHz audio, 64 kbps (@ elevation > 20° on-the-move / > 5° on-the-pause)
Standard IP: Up to 492 kbps
Streaming IP: 32, 64, 128, 256 kbps (256 kbps @ elevation > 45° on-the-move / > 5° on-the-pause)
ISDN: UDI 64 kbps / RDI 56 kbps (@ elevation > 20° on-the-move / > 5° on-the-pause)
SMS: 160 characters
Guaranteed service: Works above 5° elevation
Inmarsat frequencies: 1525.0 – 1559.0 MHz (Rx) 1626.5 – 1660.5 MHz (Tx
